Query-driven Data Integration for a Decentralized Web

Data is highly decentralized

• Produced by governments, companies, individuals, …
• Stored at different locations across the world
• Consumed through interactive applications, processes, intelligent agents, …

Decentralized data integration is challenging for user-facing app developers

• Discovering data

  How can I find data sources? How can I find data within a source?

• Combining data

  How to combine data across different data sources?

• Preserving privacy

  How to not leak sensitive data?

Query engines abstract access to decentralized data

Hide the complexities of reading and writing for app developers

↔ ↔

Image credit

Query processing over centralized data

• Dataset is collocated with query engine

  All data is known beforehand

• Single dataset

  With precomputed indexes

• Execute queries of any complexity

  SELECT ?name ?deathDate WHERE {
    ?person a dbpedia-owl:Artist;
            rdfs:label ?name;
            dbpedia-owl:birthPlace [ rdfs:label "York"@en ].
    FILTER LANGMATCHES(LANG(?name),  "EN")
    OPTIONAL { ?person dbpprop:dateOfDeath ?deathDate. }
  }


Centralization not always possible

• Private data

  Technical and legal reasons

• Evolving data

  Requires continuous re-indexing

• Web scale data

  Indexing the whole Web is infeasible (for non-tech-giants)

How to query over decentralized data?

• Data and query engine are not collocated

  Query engine runs on a separate machine

• Not just one datasets

  Data is spread over the Web into multiple documents

Approaches for querying over decentralized data

• Federated Query Processing

  Distributing query execution across known sources

• Link Traversal Query Processing

  Local query execution over sources that are discovered by following links

Federation distributes query over APIs

• Clients do limited effort

  Split up the query, distribute it (source selection), and combine results

• Servers perform most of the effort

  They actually execute the queries, over potentially huge datasets

Link traversal follows linked documents

• Documents are linked to each other

  Following the Linked Data principles

• Query engine can follow links

  Start from one document, and discover new documents on the fly

Limitations of querying approaches

• All federation members must be known before execution starts

  Source selection distributes query across list of sources
  No discovery of new sources

• Limited scalability of federation in terms of number of sources

  Current federation techniques scale to the order of 10 sources

• Link traversal can be too slow in practise

  Too many links are followed for complex queries

Focus on Knowledge Graphs

• Graph-based data model

• When data does not fit into a fixed relation model

• Based on Semantic Web / Linked Data technologies

• RDF, SPARQL, …

• Interlinking data across multiple data sources

Publishing Knowledge Graphs
as SPARQL Endpoints

SPARQL endpoint: API that accepts SPARQL queries, and replies with results.

• Most popular way to publish Knowledge Graphs

  Alternatives are data dumps and Linked Data Documents

• Very powerful

  Very complex queries can be formulated with SPARQL

SPARQL endpoints have low availabily

Public endpoints have an availability of 95%.

→ ~1.5 days downtime per month!

Vandenbussche, Pierre-Yves, et al. "SPARQLES: Monitoring public SPARQL endpoints." Semantic web 8.6 (2017): 1049-1065.

• SPARQL query expressivity is high

  Some queries can be computationally intensive

• Publicly accessible

  An unbounded number of clients can send queries

SPARQL endpoints have restrictions

To counter availability issues

• Timeouts

  Limit execution time per query

• Rate limits

  Limit number of queries a client can send

→ Limits types and number of queries that can be executed!

Alternatives to SPARQL endpoints

To limit expressivity

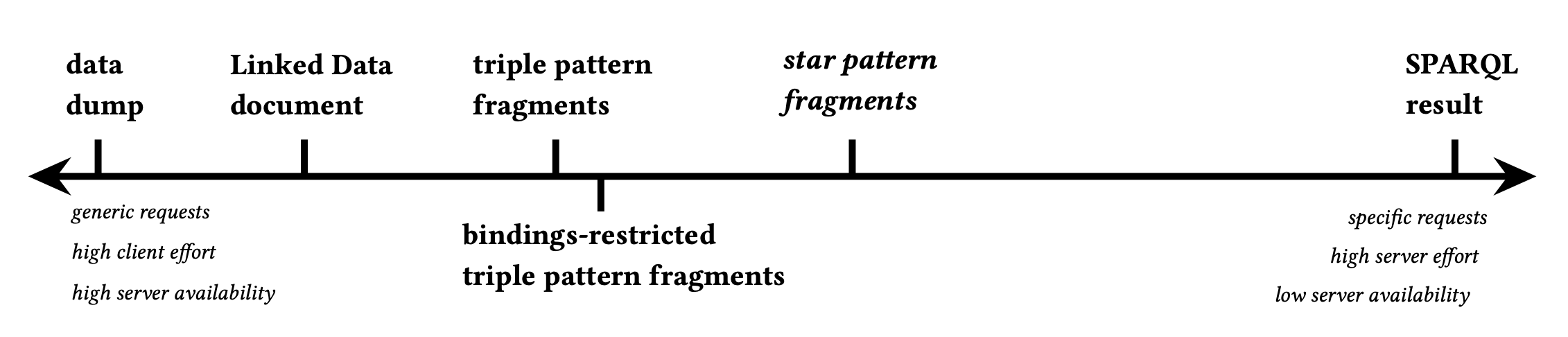

Linked Data Fragments (LDF) axis: investigates trade-offs between server and client effort for query execution.

Verborgh, Ruben, et al. "Triple pattern fragments: a low-cost knowledge graph interface for the web." Journal of Web Semantics 37 (2016): 184-206.

LDF interfaces complicate federation

→ Federation engines must combine data across heterogeneous APIs

Personal data

Decentralization initiatives offer users full control of where data is stored and who can access it

How to query protected data?

• Privacy preservation

  Ensure only authorized agents can access data.
  Trusted servers? Client-side? Combinations?

• Trustworthiness

  Allow inspection of how and where data was combined

→ Lack of understanding of how to do this for decentralized data!

Solid as decentralized environment

• Set of standards to decentralize data

  Linked Data, LDP, Authentication, …

• Solid pods decouple storage from app

  Users are in full control over their pod

• Foundation for Linked Web Storage

  Is standardized in W3C working group

We develop the Comunica framework

• Abstraction layer to query decentralized data

  Federation, link traversal, Solid, …
  SPARQL, GraphQL-LD, …

• Modular query engine framework

  Flexible experimentation ground for research (link traversal, federation, …)


• Open-source (MIT)

  Used for research and beyond
  Used by 1.500+ open-source projects, 380.0000+ monthly downloads

The future of RDF and SPARQL

• Contributing in RDF and SPARQL W3C working group

  Towards RDF and SPARQL 1.2

• And towards SPARQL 1.3

  Better list support, lateral joins, rate limit announcement, …

LDES enables data silo synchronization

• Linked Data Event Streams

  Low-cost Linked Data API
  API for replication and synchronization across datasets

• For Linked Data publishers

  Recommended by Flanders, SEMIC (EU), …

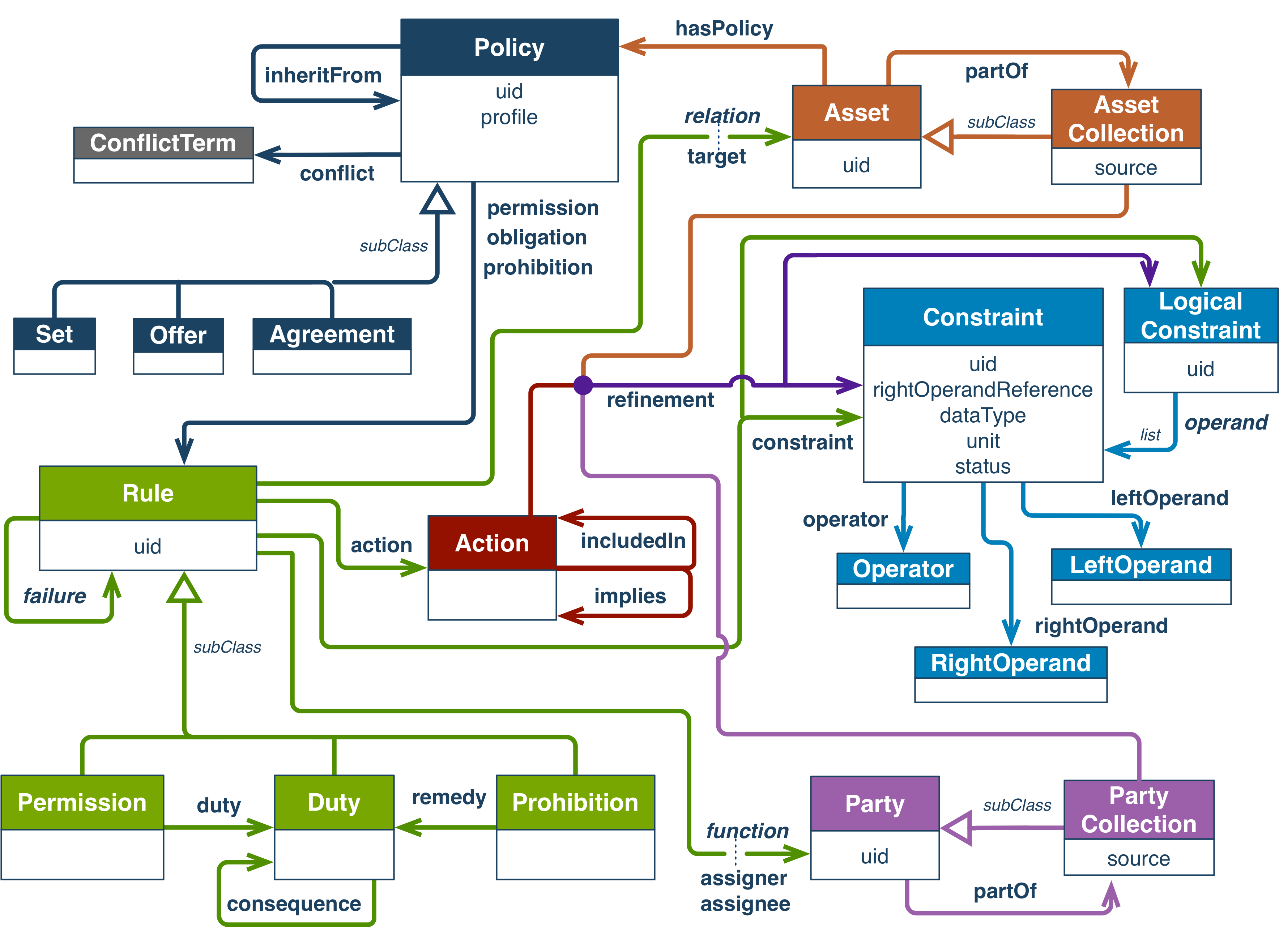

From access to usage control with ODRL

• ODRL: Open Digital Rights Language

  Policy expression language

• Usage control

  Traditional access control mechanisms are too limited
  → Permissions, prohibitions, duties
  Retain data for max 10 days, use data only for medical research, …

Conclusion: Query-driven data integration for decentralization

• Knowledge Graph technologies

  Universal semantics to interlink data across organizational boundaries

• Need for intelligent query engines

  Abstract away complexities of decentralized data

• Querying over decentralized data → research challenges

  Open to collaborations!
